2016 CMG ROTOСOMPACT 70/1400 D-TA-IBC Blow Film Extrusion Line
2016 CMG ROTOСOMPACT 70/1400 D-TA-IBC Blow Film Extrusion Line
Posizione:Europa
o
Chiama +39 346 4948054
Descrizione
Second-hand Single Screw Blow Film Extrusion Line CMG ROTOСOMPACT 70/1400 D-TA-IBC.
The extrusion line is in good working condition but some parts are missing.
Specifiche
| Produttore | CMG S.r.l. |
| Modello | ROTOСOMPACT 70/1400 D-TA-IBC |
| Anno | 2016 |
| Condizione | Usato |
| Extruder Type | Single Screw Extruder 7032LHE |
| Maximum Film Width | 1400 mm |
| Corona Treater Width | 1400 mm |
| Screw Diameter | 70 mm |
| Maximum Roll Diameter | 800 mm |
| Winder Type | Double Station Automatic Winder |
| Blown Film Die Type: | BHP 20 F-IBC (150-300 mm range) |
| Line Speed Range | 0-125 m/min |
| Cooling Water Flow Rate | 150 l/h |
| L/D Ratio | 32:1 |
| Internal Bubble Cooling System (IBC) | yes |
| Nominal Output (HDPE MFI 1.0) | 190 kg/h |

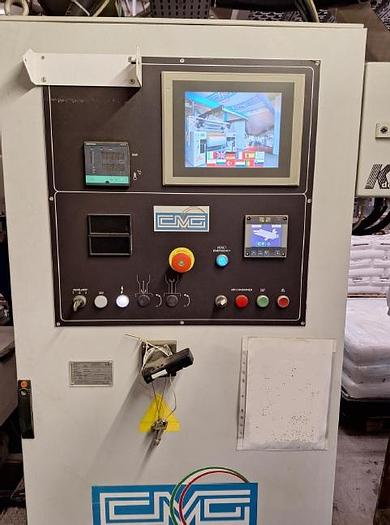

| Control System | EZ-eX Operator’s Interface with 10” TFT LCD touch screen |
| Extruder Drive Power | 90 kW AC |
