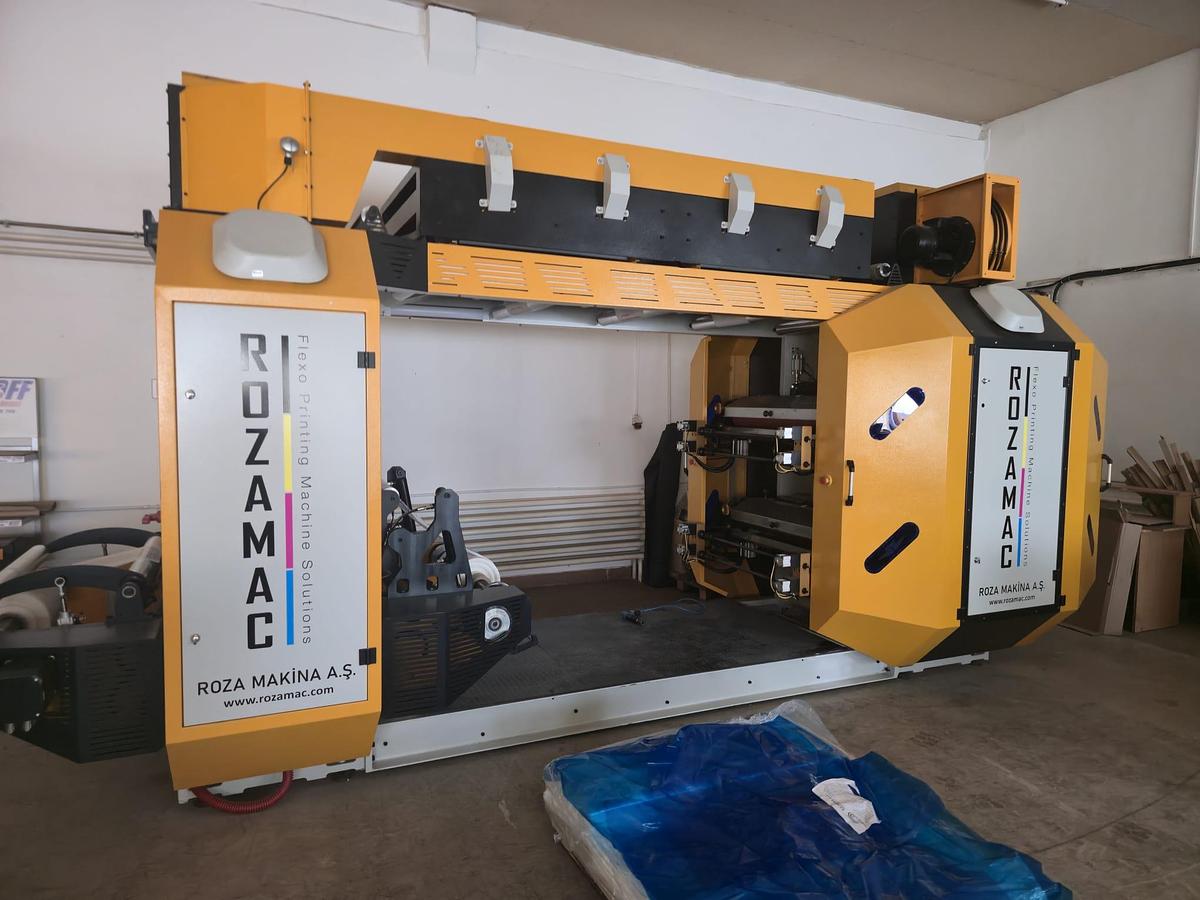

ROZAMAK RZMC-4080-SR | 4-color stack type flexo (year 2022 but never used / like new)

Descripción

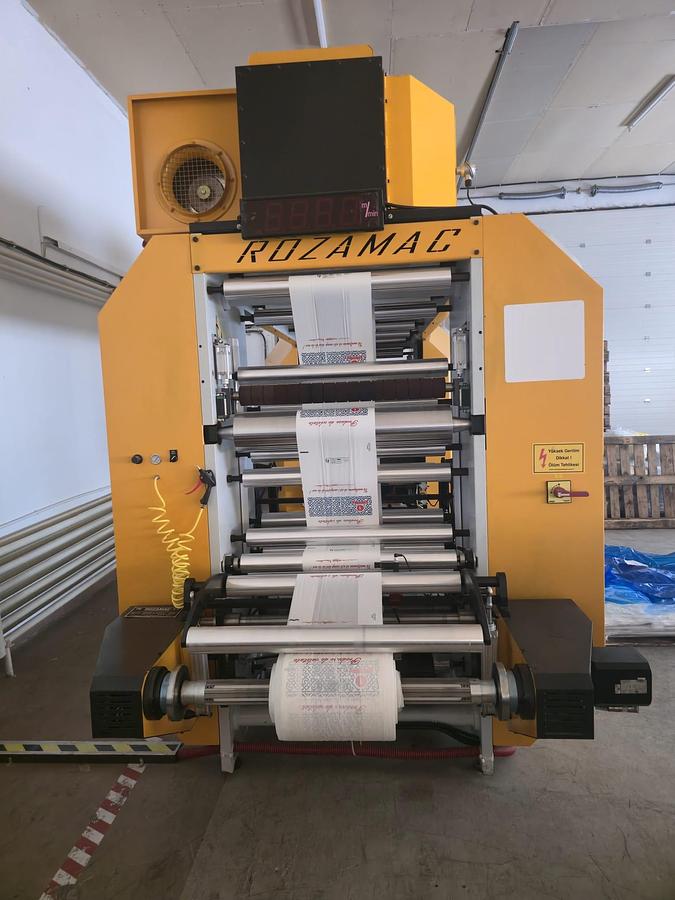

ROZAMAC RZMC-4080-SC 4-color stack type flexographic printing machine, manufactured in 2022 but never used / like new.

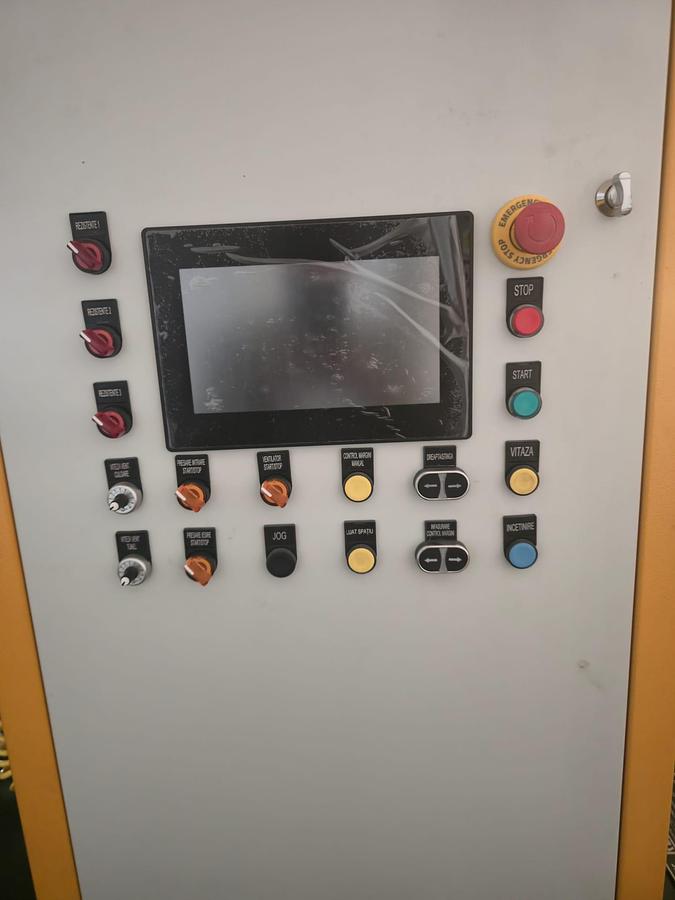

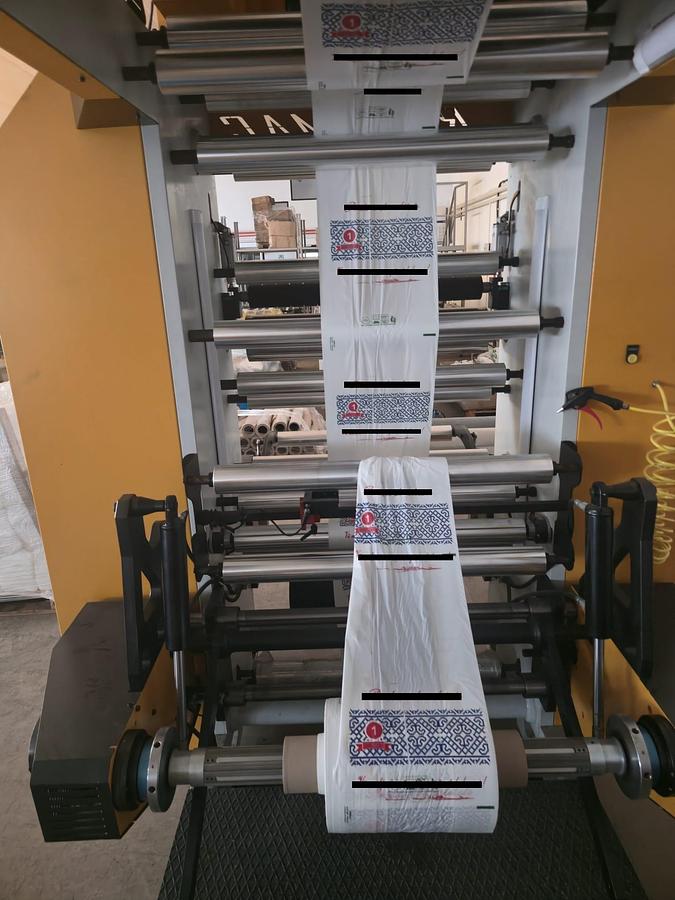

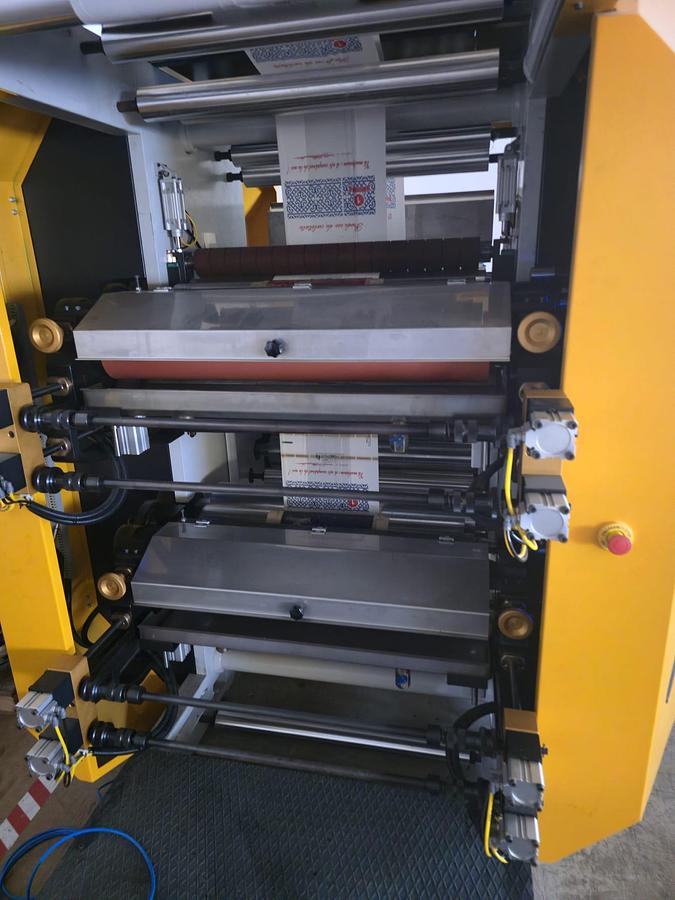

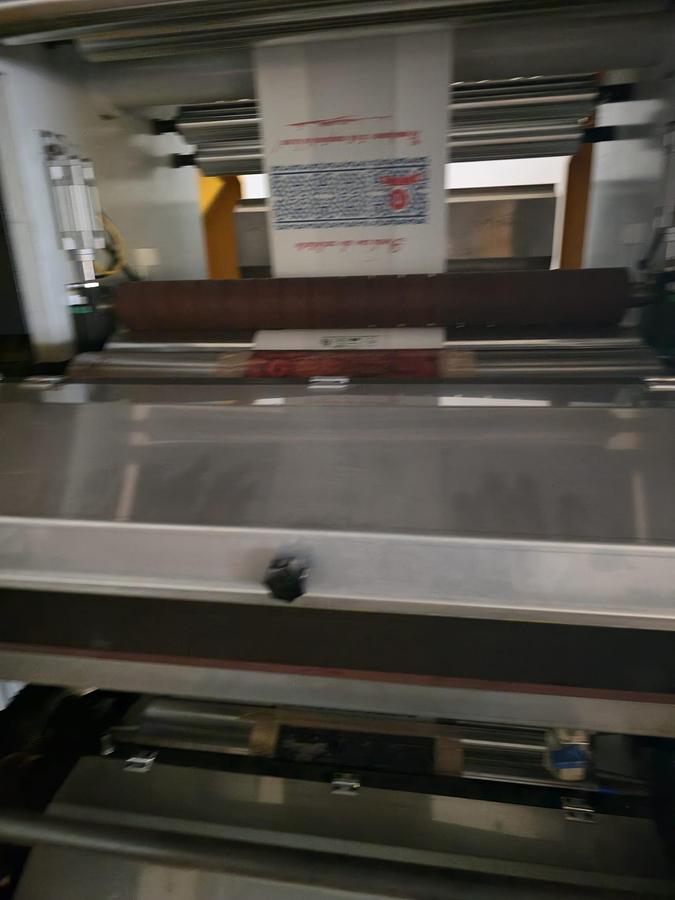

It is designed for printing on a wide range of flexible materials including HDPE, LDPE, BOPP, PET, PP, paper, non-woven materials and aluminium, with a maximum print width of 800 mm and maximum film width of 900 mm. It can operate in 4+0, 3+1 and 2+2 printing configurations, with a stated maximum printing speed of up to 270 m/min. The printing units are equipped with ceramic anilox rollers and doctor blade system, servo motors, individual ink circulation systems with stainless-steel tanks, inter-color drying and an upper drying tunnel. The machine also features PLC control, edge and tension control systems on both unwinding and rewinding sections, hydraulic reel lifting on the unwinder and a 15" touch screen.

The machine was purchased new but has never been used for regular production; it was only operated for initial testing/commissioning purposes.

Available for sale.

Especificaciones

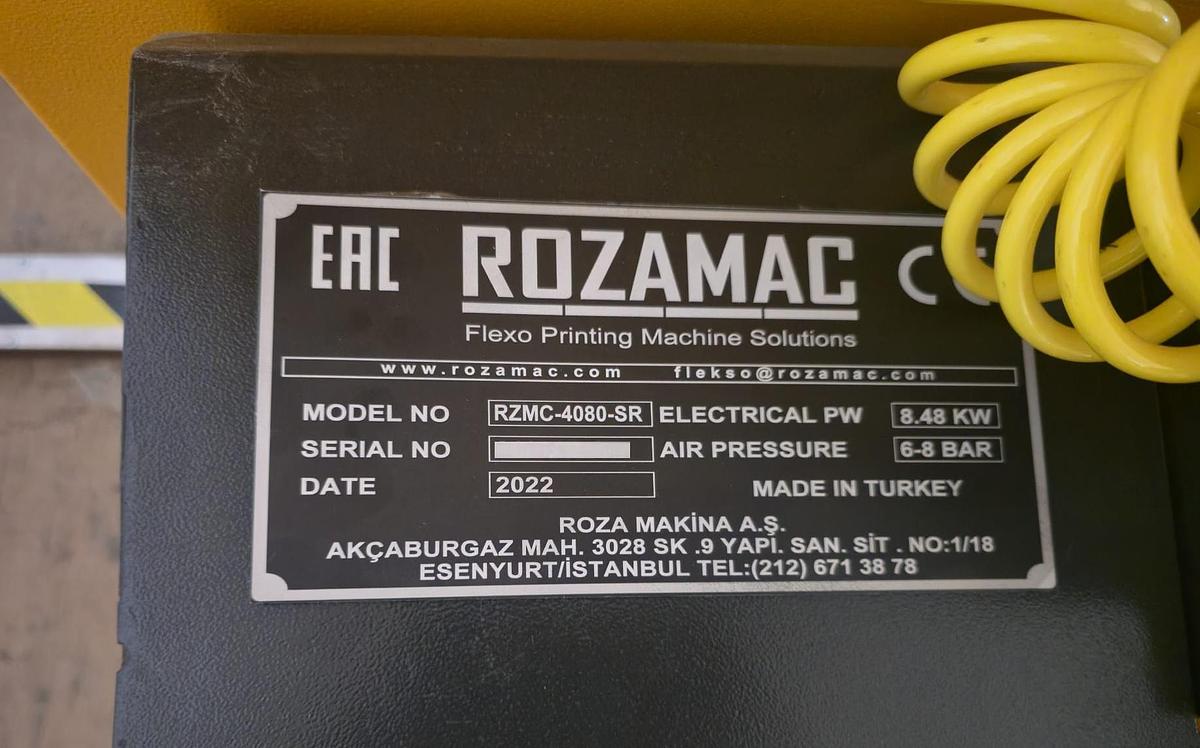

Fabricante	ROZA MAKİNA A.Ş.
Modelo	RZMC-4080-SR
Año	2022
Condición	Usado
Nr. of printing units	4 Colors
Type	Stack Type Flexo Printing Machine - servo motors
Maximum Print Width	800 mm
Maximum material Width	900 mm
Print possibility	4+0 / 3+1 / 2+2
Max. unwind roll diameter	800 mm
Max. rewind roll diameter	800 mm
Maximum Coil Weight	300 Kg
Coil Inner Diameter	76 mm (3'')
Print Speed (m/min)	270 m/min
Printable Materials	HDPE – LDPE – BOPP – PAPER – PET – PP – NW – SHRING - AL
Drying Unit System	Total 2 Units 40 x 2 : 80 Kw Resistance Drying System
Machine Total Kw	100 kW
Machine Air Pressure	6- 8 Bars
Additional information	Ceramic Anilox & Doctor Blade System \| PLC Control \| Eaton Electronic Switchgear \| Servo Motors \| SMC Pneumatic System \| Unity Camera Control Unit \| Strong Body Structure \| AC Motor Mixer System to Prevent Ink Drying During Stop/Adjustment \| Manual Side Rotation System \| Adjustable Print Unit Positioning System \| Pneumatic Group Advancement System \| Hydraulic Reel Lifting System on Unwinding Unit \| Edge Control and Tension Control System on Unwinding and Rewinding \| Pre-Press and Pre-Wrapping Rubber Roller Pressure System \| Ground and Hardened Machine Gears \| Solvent-Based and Water-Based Inks \| Electric Ink Recirculation Pump System with Stainless-Steel Tanks \| 2 Sets of Plate Cylinders: 400 mm and 450 mm \| 15” Touch Screen
