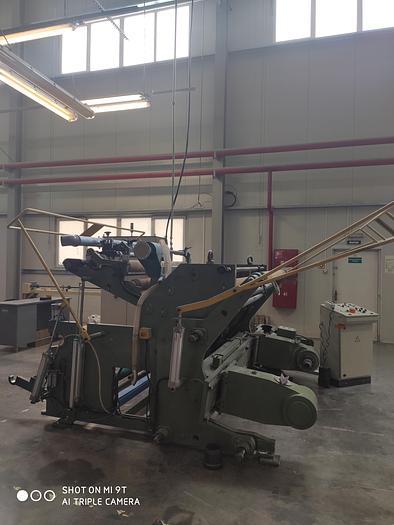

2000 H7 Group TR-G1 Slitter - rewinder

2000 H7 Group TR-G1 Slitter - rewinder

Available quantity: 1

orCall +39 346 4948054

Description

Manufacturer: H7 Group (Italy)

Model: type TR-G1

Type: Slitter - rewinder

Year: 2000

Width: 1650 mm

Diameter of rolls on unwinding max: 1200 mm

Diameter of rolls on winding max. : 1200 mm

Diameter of cores for unwinding: 76/152

Diameter of the cores on the winding: 152

Checking the edge of the web with the centering device

BST in the air

Controlling the tension of the material with a dancer shaft

Mechanical speed: 500 m / min

Power 45 kW / 175 A

Machine size: 3000 x 3500 x 1800 mm

The cutting unit is equipped with razor blades

Specifications

ManufacturerH7 Group
ModelTR-G1 Slitter - rewinder
Year2000
ConditionUsed
