1997 Zoccatelli (Italy) Flexomatik 1420 mm - 4 colors stack type flexo

1997 Zoccatelli (Italy) Flexomatik 1420 mm - 4 colors stack type flexo

Available quantity: 1

orCall +39 346 4948054

Description

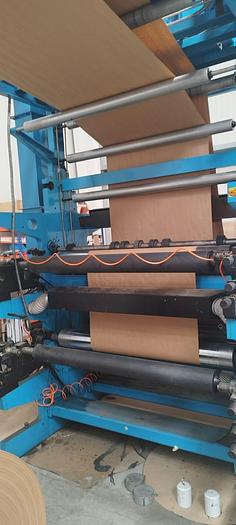

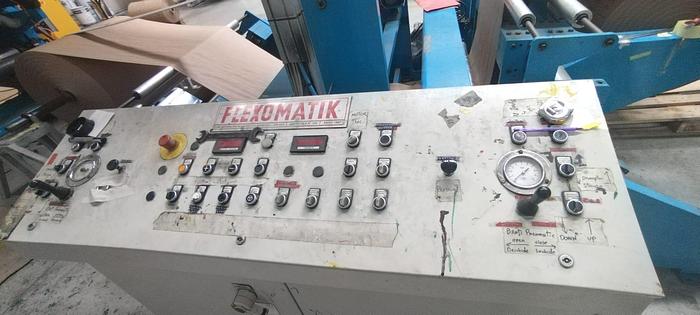

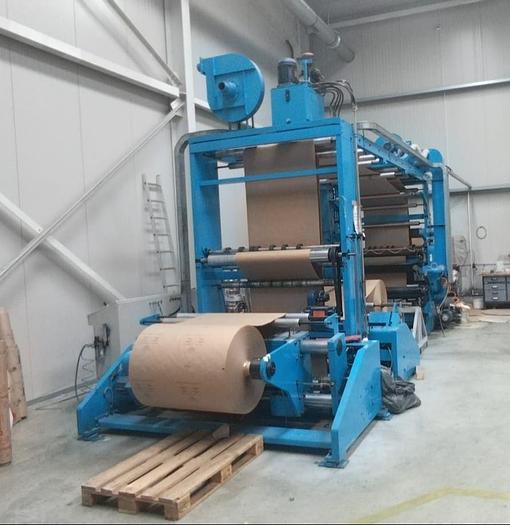

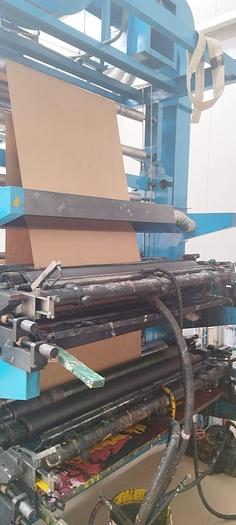

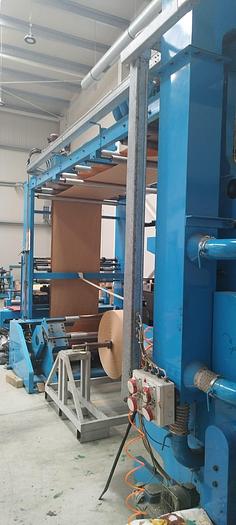

Zoccatelli Flexomatik 4 colors flexo (stack)

Predisposed for other 2 units

Manufacturer. Angelo Zoccatelli (Italy).

Model: Flexomatik

Type. Stack type flexographic printing press.

Year 1997 (upgraded in 2014).

Printing width: 500 mm – 1420 mm.

Print repeats: 300 mm – 800 mm.

Reverse printing: yes.

Unwinder and rewinder reel max diameter: 1000mm.

Max speed: 120 m/ min.

Materials to be printed: PAPER (40-140gr), LDPE(30-160micron), HDPE (18-60micron), Polypropylene (18-40 micron).

Ceramic anylox cilinders.

Cylinders: 4 x 400 mm, 4 x 450 mm, 4 x 500 mm, 4 x 550 mm, 4 x 600 mm.

Complete chamber doctor blades system

4 ink pumps.

Ink supply & washing systems and consumables by “Ake Boose”.

Predisposed for other 2 units (6 col.)

Machine dimensions: H: 4m, W: 3.5m, L: 6.5.

The machine is visible in operation.

Specifications

ManufacturerZoccatelli (Italy)
ModelFlexomatik 1420 mm
Year1997
ConditionUsed
