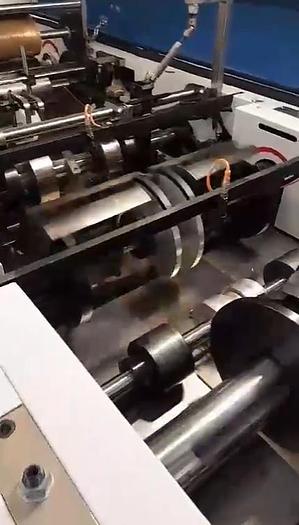

2010 CURIONI / STARLINGER SUN MASTER 541 / cb starKON 100 with in line FLAT handles unit
2010 CURIONI / STARLINGER SUN MASTER 541 / cb starKON 100 with in line FLAT handles unit
EXW (dismantling and loading excluded)
Location:Europe
Available quantity:1
orCall +39 346 4948054
Description
This cb starKON 100 was originally made for a project by Starlinguer (for producing PP-woven bags) and it has been used very few.

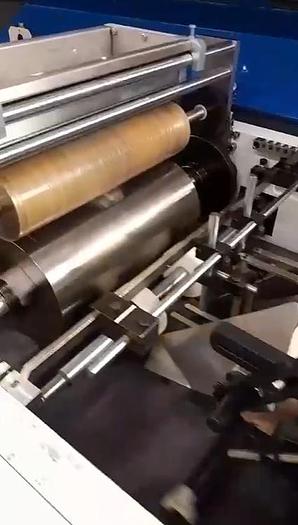

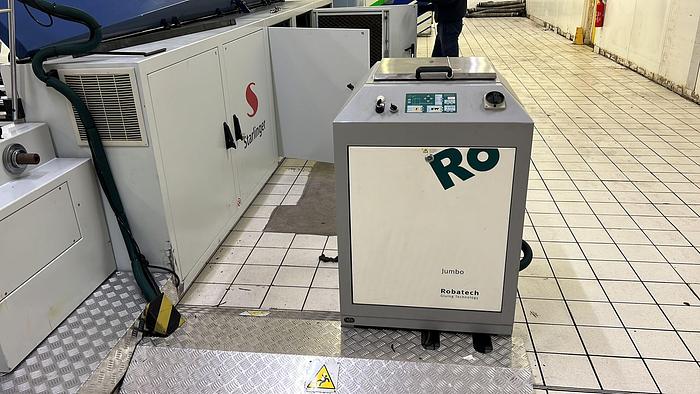

Hotmelt Longitudinal and handles gluing unit by Robatech (Italy)*
*Possibility to install the Nordson gluing system for paper bags production for transforming the machine in the normal CURIONI SUN MASTER 541 configuration (from CURIONI SUN/to be quoted).
Specifications
| Manufacturer | CURIONI / STARLINGER |
| Model | SUN MASTER 541 / cb starKON 100 with in line FLAT handles unit |
| Year | 2010 |
| Condition | Used |
| Mechanical speed | 200 cycles/minute |
| Bag width (min - max) | 220 – 540 mm (Bag width with handles: 240 – 540 mm) |
| Bag lenght (min - max) | 270 - 650 mm |
| Bottom width (min - max) | 70 - 200 mm |
| Cut length (min. - max.) | 350 - 780 mm |

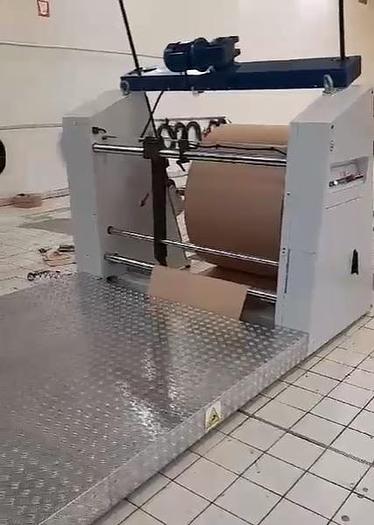

| Reel width (min. - max.) | 610 - 1430 mm |
| Max. diameter of the reel | 1500 mm |
| Inner core diameter | 76 mm |
| Weight of paper for paper bags production (min - max) | 80 -130 gsm |

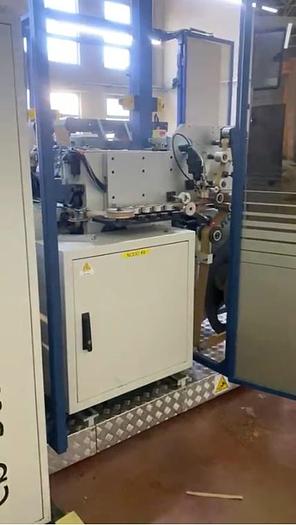

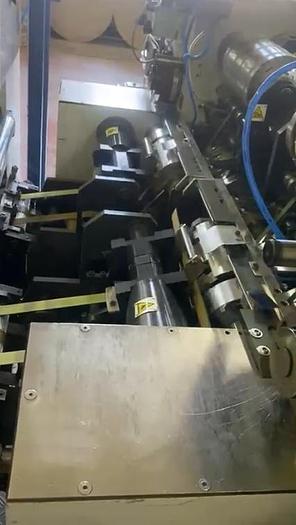

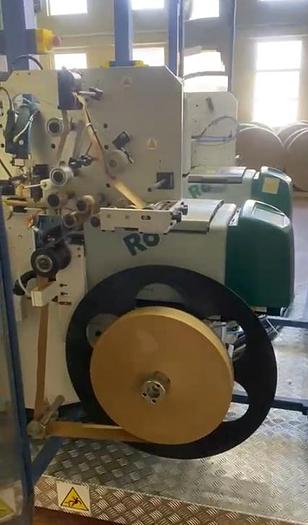

| FLAT handles unit | Type of handle flat paper handle | Mechanical speed 170 cycles/minute | Min. distance between the handles mm 270 | Max. distance between the handles mm 740 | Flat handle height mm 18 | Flat Handle width mm 126 | Patch height mm 59 | Patch length mm 160 | Reels width for flat handle mm from 68 to 70 | Max. diameter of paper reels for flat handle mm 800 | Inner core reel diameter for flat handle mm 76 | Weight of paper for flat handle 70-100 gsm | Reels width for patches mm 160 | Max. diameter of paper reels for patches mm 800 | Inner core reel diameter for patches mm 76 | Weight of paper for patches 70 -100 gsm | |
| Visible in operation | yes |
