2012 4M Refai Srl CSS - Sheeter
2012 4M Refai Srl CSS - Sheeter
EXW
Location:Italy
orCall +39 346 4948054
Description
We are pleased to submit to your attention a pre-owned sheeter model CSS 10-04.
The machine is in excellent condition can process tissue paper, wrapping paper, gift paper, coupled paper, PE, PET, BOPP and so on in the weight from 14 to 70 gsm
It is possible to test the machine, also with the material of the customer.
Possibility of cutomization the machine with accessories according to the needs of the buyer.
The machine is fully functional and presents itself in an excellent state of preservation (test possible on request).
Specifications
| Manufacturer | 4M Refai Srl |
| Model | CSS 10-04 |
| Year | 2012 |
| Condition | Used (visible in production) |
| Material | Paper, tissue paper, wrapping paper, gift paper, coupled paper, PE, PET, BOPP and so on in the weight from 14 to 70 gsm |
| Max reel width | 1050 mm |
| Reel max weight | 1000 kg |
| Core reel diameter | 76 mm |
| Max reel diameter | 1200 mm |
| Cut width (min. - max.) | 150 mm - 500 mm |
| Cut format length (min. - max.) | 200 mm - 400 mm |
| Max grammage under blade | 300 gsm (recommended) |
| Max speed | 500 cuts/min (depending on material and format) |
| Cut accuracy | ± 0,20 mm (depending on material and printing accuracy) |
| Max ream height | 200 mm |
| Max electric power | 15 kW |
| Noise emission | < 70 dB(A) |
| Overall dimensions (approx.) | 4.4 x 6.7 m |
| Sheeter weight (approx.) | 3800 kg |
| Safety stop devices | They automatically trigger by pressing the emergency stop buttons. The micro-switches of the covers have interlocked double protection, to prevent the opening of the safety guards while the machine is running. In addition, a manual operation procedure is provided that allows the operator to do adjustments with opened carters in complete safety |
| Aluminium and lexan anti-accident security guards | For increased electrostatic discharge of the material, especially suitable for plastic materials |
| Air generation system | Recommended for material weighing less than 50 gsm |
| Simple efficiency antistatic bars | For increased electrostatic discharge of the material, especially suitable for plastic materials |
| Dual reel unwinder | No. 2 motorized overlapping unwinders with pneumatic air-expanding shafts for 76 mm reels core |
| Double register control | No. 2 optical sensor system to cut two centred printing reels at the same time |
| Automatic joggers with 3 linear slides | Automatic adjustment of the joggers according to the selected cutting format |

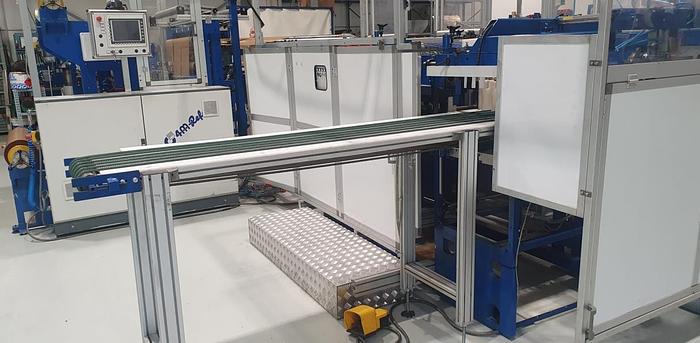

| Automatic ream unloading system | Motorized rotary conveyor table that allows the automatic unloading of the reams without stopping the machine. |
| Condition | Excellent state of preservation. Carried out the following works on the machine: - Replacement of all defective mechanical parts | Replacement of blades and cutting knives | Complete mechanical, electrical, visual and functional test | Setup and performance testing |
| Documentation | CE Conformity Declaration | User and maintenance instruction manuals in English | Electric drawings |
| Visible in operation | Yes | possibility to test the sheeter also with the material of the customer |
