2016 HEIMER Lackieranlagen + Lufttechnik PAINTING PLANT

Painting plant

Manufacturer: HEIMER Lackieranlagen + Lufttechnik

Model: Lackierzentrum

Year: 2016

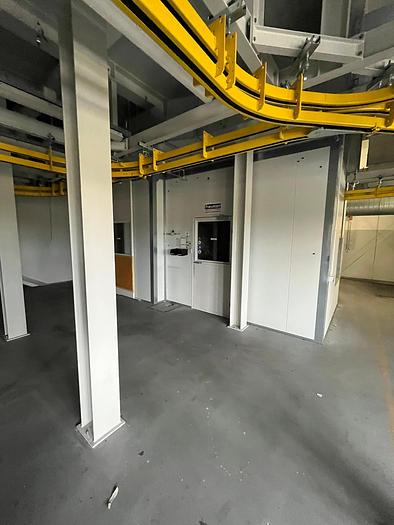

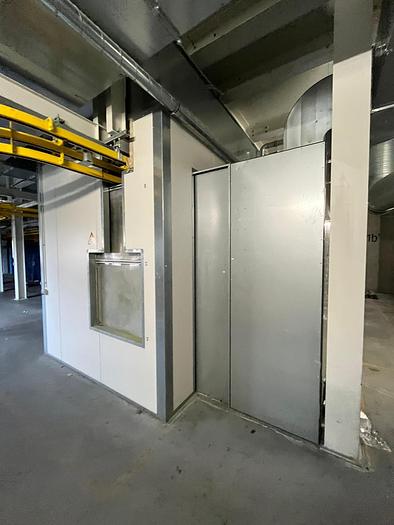

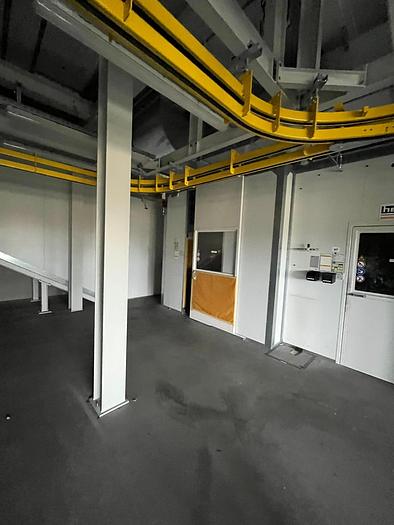

Paint booth:

·         Length: approx 3500 mm

·         Width: approx 2500 mm

·         Height: approx. 3000 mm

·         Supply air volume: approx. 1000 m3/hour

·         Output air volume: approx. 1000 m3/hour

Evaporation zone:

·         Length: approx 18500 mm

·         Width: approx 1200 mm

·         Height: approx. 3000 mm

·         Recirculated air quantity: approx. 3000 m3/hour

·         Output air volume: max. 3000 m3/hour

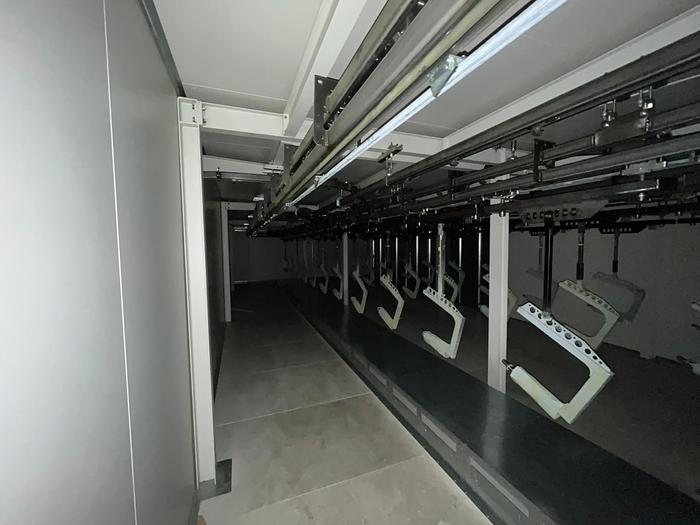

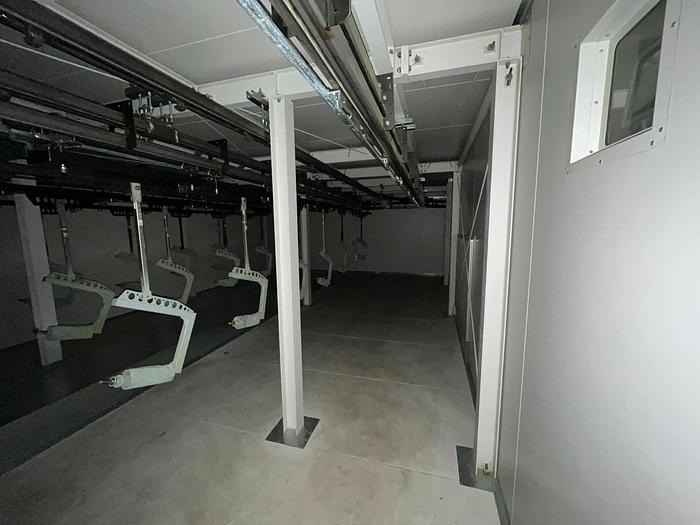

Paint dryer:

·         Length: appr. 23 500 mm

·         Width: appr. 10500 mm

·         Height: app. 2700 mm

·         Recirculated air quantity: approx. 30000 m3/hour

·         Output air volume: max. 3000 m3/hour

·         Max. temperature of the dryer: 60 °C

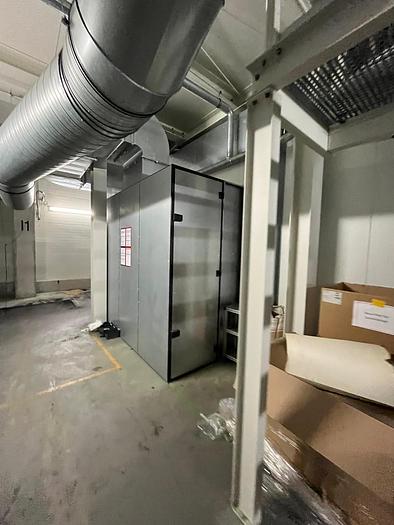

Color supply room:

·         Length: appr. 3000 mm

·         Width: appr. 1500 mm

·         Height: app. 3000 mm

·         Output air volume: approx. 530 m3/hour

·         Supply air supplement: approx. 530 m3/hour

silicone spray stand:

·         Length: appr. 2280 mm

·         Width: appr. 1950 mm

·         Height: app. 2300 mm

·         Output air volume: approx. 8000 m3/hour

Datas of the rim half:

·         shape: Round

·         Weight: Max. 120 Kg

·         Diameter (Ø): aprox. 700 mm

 Datas of the piston housing:

·         shape: Round

·         Weight: Max. 35 Kg

·         Diameter (Ø): aprox. 600 mm

 Data torque tube:

·         shape: Round

·         Weight: Max. 50 Kg

·         Diameter (Ø): aprox. 500 mm

Immediately available for sale.
