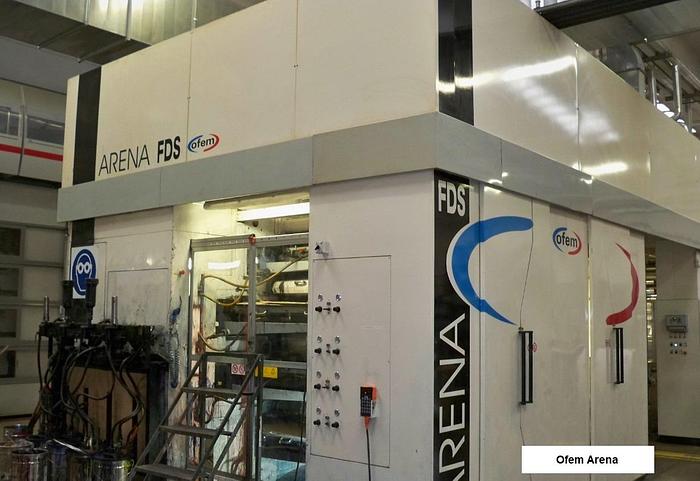

2002 Ofem Arena GL-768-120 Gearless 8 C.I +1 Stack col. flexo

Manufacturer: OFEM Model: ARENA GL-768-120 Gearless Year: 2002 Number of colors: 9 Print possibilities: (8+1) (9+0) 8 + 1 downstream for coating UV and water based varnishes on the same side of the web and in register with the spots printed on the CI section. Max web width: 1270 mm Max print width: 1220 mm Max reel diameter unwinder:1300 mm Repeats: 300 to 760 mm Cliche thickness: 3mm (double sided tape included) with in line longitudinal slitting system (5 knives) Rewinder type: Single axis Drying: Hot air drying system. Thermic oil Heating source. Videocamera: 2 BST Genius videocameras and automatic register system Web guides: 1 before printing and 1 before rewinding Inking system: Enclosed doctor blade chambers with ceramic anilox rollers Max speed of 350 m/min (depending on ink, material and desired print quality) Sleeves: 9 print sleevs included Anilox (Nr. 27): 2 X 300 lines/cm., vol. 4,2 g/m2. 5 X 255 lines/cm., vol.5,0 - 5,3 g/m2 ; 5 X 180 lines/cm., vol.7,8 g/m2; 1X 160 lines/cm., vol.9,0 g/m2; 1 X 140 lines/cm., vol.11,0 g/m2; 2 X 120 lines/cm., vol.13,0 g/m2; 2 X 100 lines/cm., vol.16,0 g/m2 1x 100 lines/cm., vol.16,5 g/m2; 3 X 80 lines/cm., vol.16,0 g/m2 ; 1 X 70 lines/cm., vol. 20,0 g/m2; 1 anilox HPF4-220 lines/cm., vol. 5,5 g/m2; 2 anilox HPF1-120 lines/cm., vol.10,0 g/m2; 1 anilox engraved to HPF-W3-140 lines/cm., volume 11 g/m2;
