ALPINE HS 75 – monolayer blown film extruder (1990)
No longer available
ALPINE HS 75 – monolayer blown film extruder (1990)
Milan, Italy
Description
Manufacturer: ALPINE
Model: HS75
Year: 1990

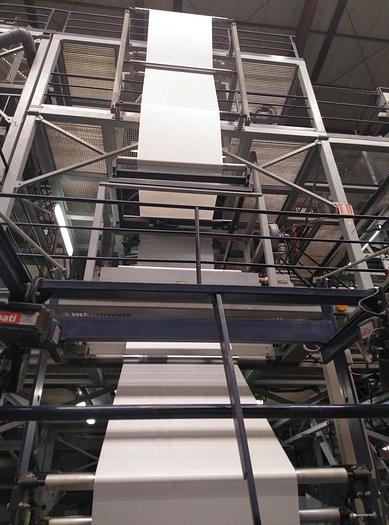

Monolayer blown film extruder
Bubble cooling system with IBC tower and PEAC system for HDPE high blow.
Input / output turbines and ring turbine with frequency inverters.
Ultrasonic system for Bubble regulation by pneumatic valve for air outlet regulation.
Automatic thickness control (CONTREX)
Parallel row 1.5 Ø225mm
Gammatec gauge cage for width up to 1800mm / height adjustment 1000mm
Thickness reader ring: maximum width 1600mm
Extraction rollers and modified ALPINE woods with horizontal roller assembly DECATEX.
Folding triangles for bellows formation.
Motorized triangle system.
3-floor structure.
1600mm band aligner
1600mm FyB Corona Treater
Automatic winder ALPINE of max. width 1600mm and maximum diameter of coils 1300mm with tension control.
3 component gravimetric system.
Visible in operation untill March 2020.
Available for delivery in March 2020 (the machine can be reserved)
Specifications
Year | 1990 |
Condition | Used |
