W&H BOTTOMER AD 2390 + 2 COMPLETE W&H TRANSYSTEMS 9350 (from TUBER to BOTTOMER – from BOTTOMER end to PALLETIZATION)

Contact us for price

Africa

orCall +39 346 4948054

Description

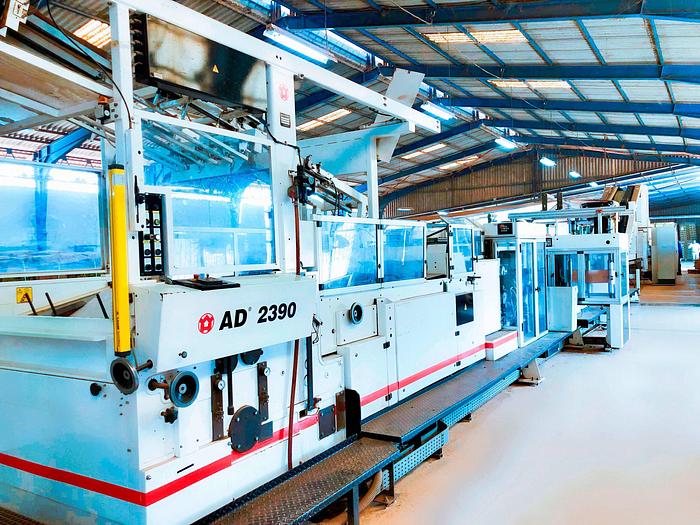

1) W&H BOTTOMER AD 2390
Year of production: 2007 (Installed in mid. 2008)
- SACK: Sack length : 41 – 74 cm, Bottom width : 9 – 14 cm, Sack width: 32 – 55 cm,Open bottom width: 18 – 34
cm, Tube length: 54 – 94 cm.
- VALVE: Cutting length: 8 – 25 cm, Length: 8 – 24 cm, Valve width: 10 – 30 cm
- BOTTOM PATCH: Length: 18 – 45 cm, Width: 8 – 18 cm.
Output : (Sacks à 300 sacks/min, 18 000 sacks/hour), (2-drums delivery packets à 25 packages/min)
2-drum delivery, 2 colors bottom patch printing unit , Venthole perforator, Rotary feeder, Tube aligner , Conveyo, Creasing station, venthole perforation , tube end slitting unit , Sucker station, Spreader assembly ,Open bottom check, Valve unit , Valve patch unwinders, Bottom creasing station, Bottom pasting station, Control PC, Bottom closing station, Folded edges pressing station , Bottom patch unwinders , Foldover unit, Turning station, Reject gate, Transfer belt, 2-Drum delivery, Counting station, Packet forming station.
2) TRANSYSTEM 1: WINDMÖLLER & HÖLSCHER 9350
• (for the interconnection from a tuber to the bottomer)
3) TRANSYSTEM 2: WINDMÖLLER & HÖLSCHER 9350
• (for the interconnection from the two drum delivery to the to palletization)
In operation untill October 2019. Machine now dismantled and stored in warehouse.
Possible to offer remantling service.
VIDEO: https://www.youtube.com/watch?v=XAtItwdmRpw

Specifications

ManufacturerWINDMÖLLER & HÖLSCHER (W&H)
ModelAD 2390 + 9350
Year2007
ConditionUsed
