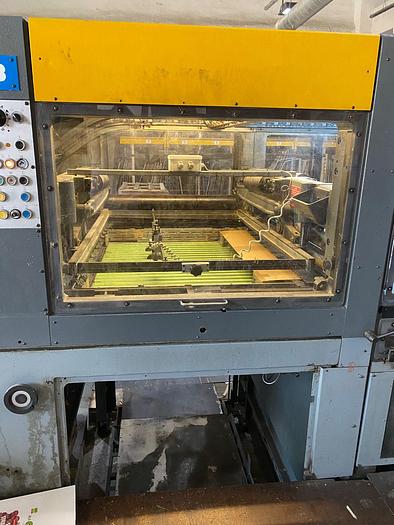

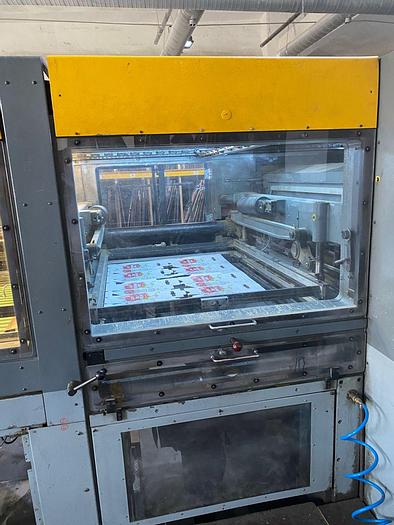

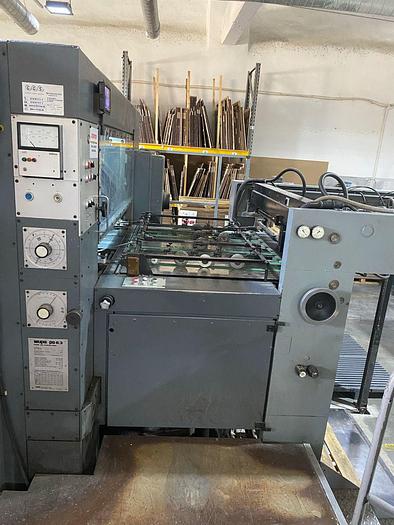

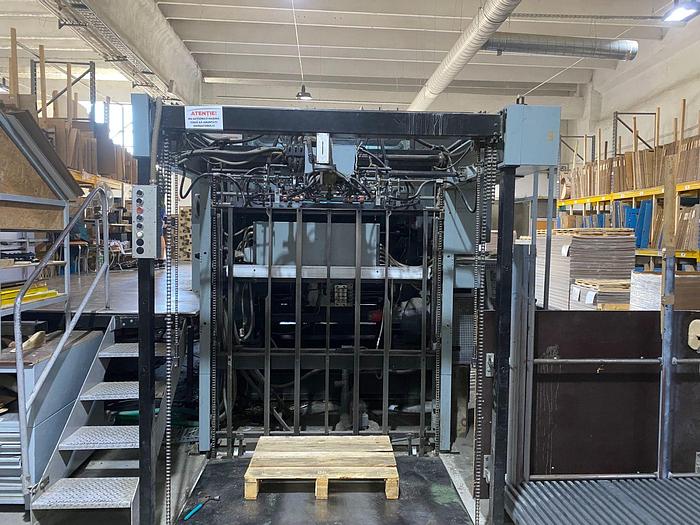

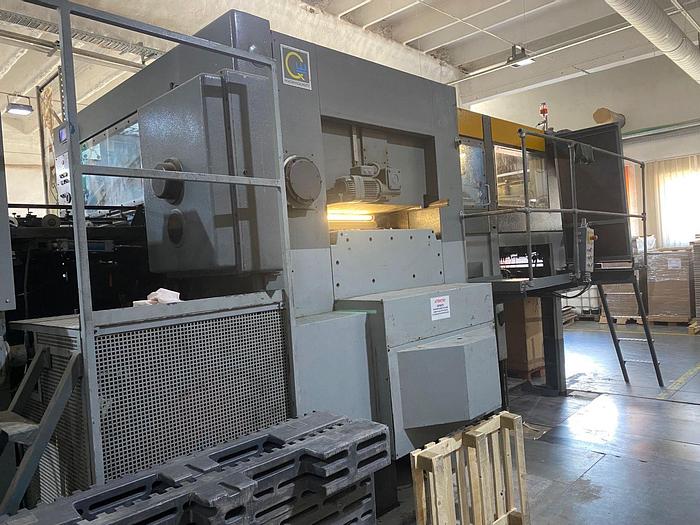

1983 WUPA PS 6.3 A - Die Cutting machine

No longer available

1983 WUPA PS 6.3 A - Die Cutting machine

Available quantity: 1

Description

Manufacturer: WUPA (Germany)

Model: PS 6.3 A

Year: 1983

Materials:

Suitable for the following materials (depending on quality and lay-out):

Paper down to a minimum weight of 80 gr/m2

Carton and solid board up to 2000 gr/m2

Corrugated board up to 5 mm tickness

Capabillity specifications:

Max. sheet size: 1020 x 1420 mm

Min. sheet size: 590 x 700 mm

Max. cutting pressure when running max. sheet size 6,0 MN

Max Speed 6500 SPH

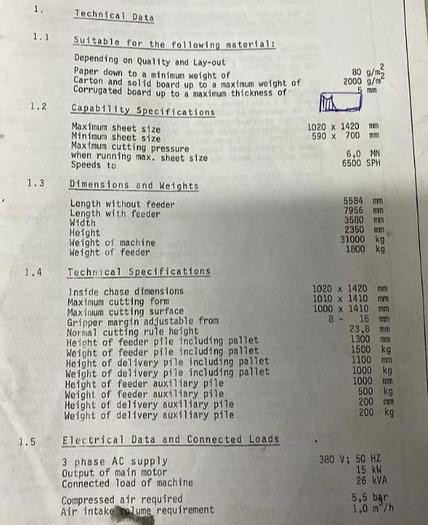

Technical specifications:

Inside chase dimensions: 1020 x 1420 mm

Max. cutting form 1010 x 1410 mm

Max. cutting surface 1000 x 1410 mm

Gripper margin adjustable from 8-16 mm

Normal cutting rule height 23,8 mm

Height of feeder pile including pallet 1300 mm

Weight of feeder pile including pallet 1500kg

Height of delivery pile including pallet 1000 mm

Weight of delivery pile including pallet 1000 kg

Height of feeder auxiliary pile 1000 mm

Weight of feeder auxiliary pile 500 kg

Height of delivery pauxiliary pile 200 mm

Weight of delivery auxiliary pile 200 kg

Dimensions and weights:

Lenght without feeder 5584 mm

Lenght without feeder 7956 mm

Width 3580 mm

Height: 2350 mm

Weight of the machine 31000 kg

Weight of the feeder 1800 kg

Electrical data and connect loads

3 phase AC supply 380 V; 50 HZ

Output of main motor: 15 Kw

Connect load of machine 26 kVA

Compressed air required: 5,5 bar

Air intake volume requirement 1,0 m3/h


Visible in operation and available for sale.



Specifications

ManufacturerWUPA
ModelPS 6.3 A - Die Cutting machine
Year1983
ConditionUsed (visible in production)
