2003 Schmidt VARICONIC 800 CLASSIC - For the production of plastic conical bags

2003 Schmidt VARICONIC 800 CLASSIC - For the production of plastic conical bags

Available quantity: 1

Europe

orCall +39 346 4948054

Description

Manufacturer: Schmidt Verpackungstechnik (Germany)

Model: Variconic Vario 800

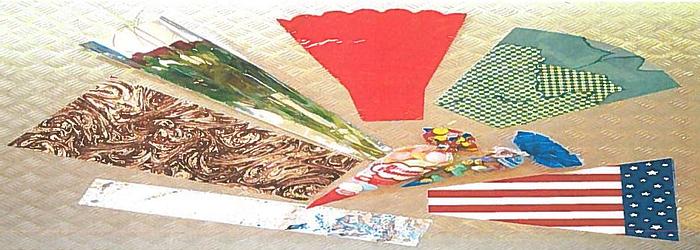

For the production of plastic conical bags (funnel- /flower bags)

Working width: max. 800 mm

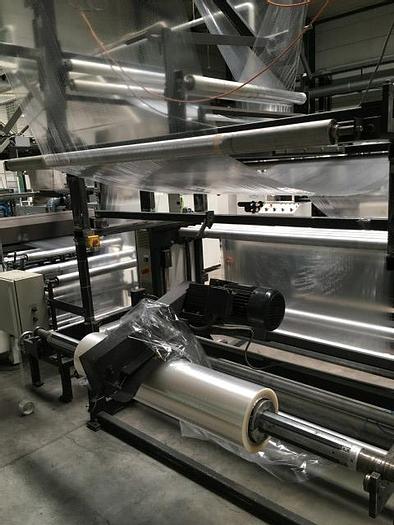

Reel width: max. 1600 mm

Reel diameters:   max. 800 mm

Hole punching devices in various diameters

Material: LDPE, OPP, CPP, Coex, 30 - 60 my // 1.2 - 2.4 mil

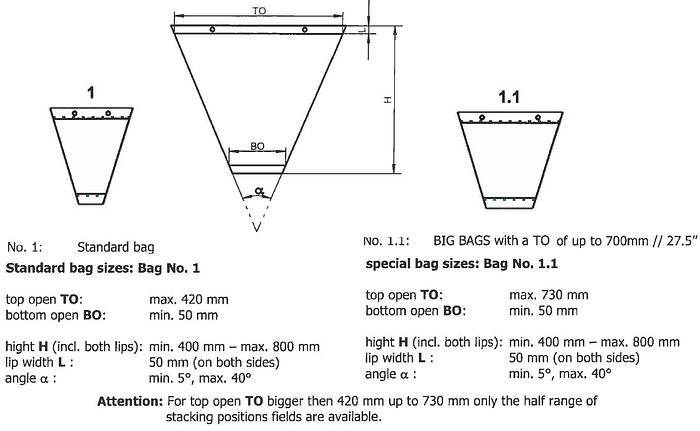

Bag height with both lips: 350 - 800 mm // 13.8 - 31.4"

Height of each lip: 50 mm // 2.0"

Bag top width: max. 430 mm // 17.0"

Bag bottom width: min. 50 mm // 2.0"

Total angle: 5 - 45°

Speed Varioconic Wicket (mechanical): max. 50 m/min. // 165 ft/min. max. 125 cpm

Power: 40 kW

compressed air connection: 8 bar / -consumption: 500 Nl/min

cooling water: 12°C / consumption: 10l/min.

Machine assembled but no longe visible in production.

Immediately available for sale.

Specifications

ManufacturerSchmidt Verpackungstechnik
ModelVario 800
Year2003
ConditionUsed
