2005 MANZONI TC 504 | C.I. FLEXO 4 COL. (600mm)
2005 MANZONI TC 504 | C.I. FLEXO 4 COL. (600mm)
Posizione:Europa
o
Chiama +39 346 4948054
Descrizione

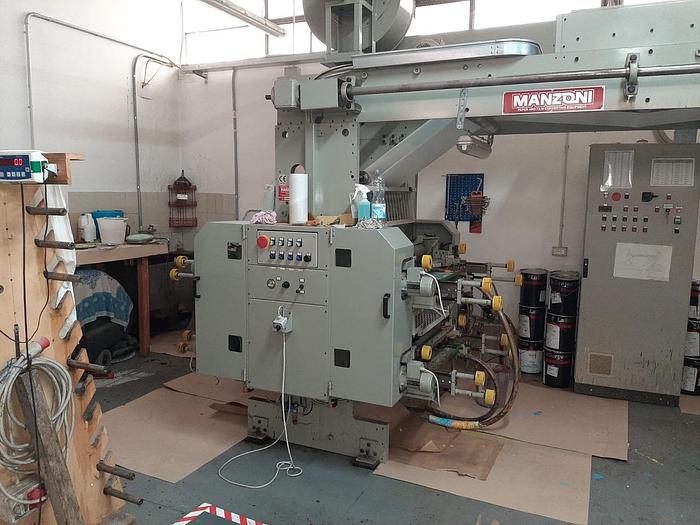

MANZONI TC 504 (4 colors x 600 mm) reel to reel C.I flexo press studied for printing Paper from 30 to 80 g/m² with water based ink.
This machine is composed from the unwinding unit, 4 flexo printing units and the rewinding unit.
Machine used very few and in very good condition.
Specifiche
| Produttore | MANZONI |
| Modello | TC 504 4x600 mm |
| Anno | 2005 |
| Condizione | Used (test possible on request) |
| Type | C.I flexo press |
| Number of printing units | 4 col. |
| Max printing width | 600 mm |
| Max web width/material passage | 650 mm |
| Format (min-max) | 280 - 600 mm |
| Max reel unwinder diameter | 1200 mm |
| Max reel unwinder weight | 600 Kg |
| Max reel rewinder diameter | 600 mm |
| Max reel rewinder weight | 150 Kg |
| Max mechanical speed | 130 m/min |
| Material | Paper from 30 to 80 g/m² |
| Ink | water based |
| Clichè thickness | 2 mm (including tape) |
| Anilox cylinder diam. | 108 mm |
| Closed Doctor blade | teflon coated |
| Drying | By air | 2 air fan: 1 for blowing (with motor 4Kw) and 1 for aspiration (with motor 4Kw) |
| longitudinal cutting | equipped with 4 blades and counterknives for longitudinal cutting and vacuum system for trims |
