Bonardi Mira 1200 (6 col. 1200 mm C.I Flexo)

Bonardi Mira 1200 (6 col. 1200 mm C.I Flexo)

Posizione:

Disponibilità in magazzino:1

o
Chiama +39 346 4948054

Descrizione

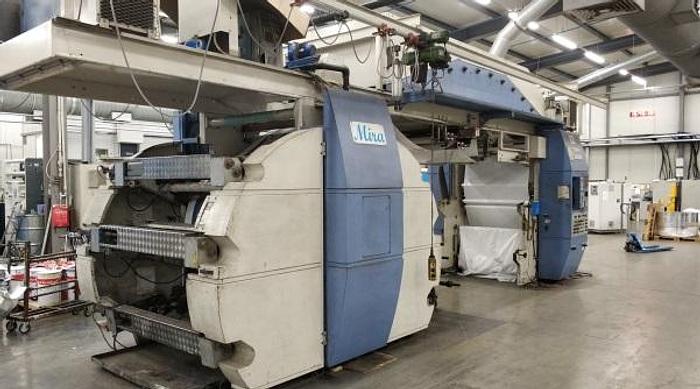

Second hand 6 colors central drum Flexoprinting printing machine (C.I.) Bonardi Mira 1200 6 col. year 2002.

Suitable for printing, with Flexo water based or solvent based ink, paper or film up to 1200 mm wide.




Mostra tutto

Specifiche

ProduttoreBonardi
ModelloMira 1200(6 col. 1200 mm C.I Flexo)
Anno2002
CondizioneUsato
TypeCentral drum Flexo printing printing machine (C.I.)
Nr. of colors6
Web Width1250 mm
Printing Width1200 mm
Printing Repeat (Min. - Max.)350 - 800 mm
UnwinderDouble unwinder with automatic control tensión
Rewinderdouble
Max. reel diameter700 mm
Inner core diameter3”
MaterialFilm, paper
Drying SystemElectrical
SystemSleeved
Mechanical speed 250 m/min
Additional informationPlate-Cylinder Gear-Pitch Module: 5 mm | Plate-Thickness, Sticky Back Included: 1,64 mm | Sleeve changeover central impression press | Helical gears, pitch 5 mm | Side register capability +/- 10 mm | Up-down register capability +/- 7 mm | Web tension range 30-250 N | Flexo inks solvent based and water | № 6 pneumatic pumps | Printing plate thickness 1,14 mm | Sticky back adhesive thickness 0,50 mm | Chill roller with OD 290 mm | Double unwinder with automatic control tensión | Electromagnetic powder brakes | Pneumatic loaded dancer with two low inertia air cylinders | Two air expandable shafts | Two motors CA | Pneumatic loaded dancer with two low inertia air cylinders | Micro switch to stop the press in case the web breaks or reel end | Marriage roll pneumatic operated to enable to splice to be carried out at reducer speed with operator intervention
AniloxA total package of 10 ceramic coated and laser engraved aniloxes 260,100, 140 l/cm
SleevesRepeat 5 set of printing sleeves
AccessoriesPRINTING MANDRELS Nr. 02 sets of Nr. 06 mandrels | BANANA ROLLER 1 Banana at the infeed (before nip on top of the central drum) | 1 Banana at the infeed (before rewinder )
