1985 SCHIAVI (Officine Padane) Zodiac 4 col. flexo stack - 1000 mm
1985 SCHIAVI (Officine Padane) Zodiac 4 col. flexo stack - 1000 mm
Posizione:Italia
Disponibilità in magazzino:1
o
Chiama +39 346 4948054
Descrizione

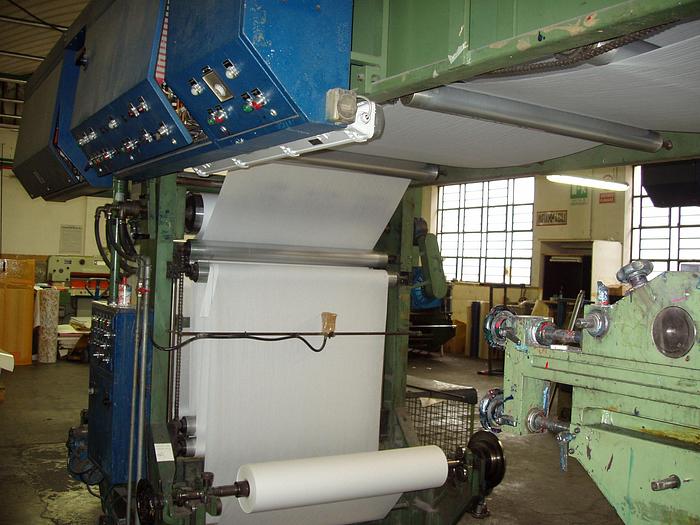

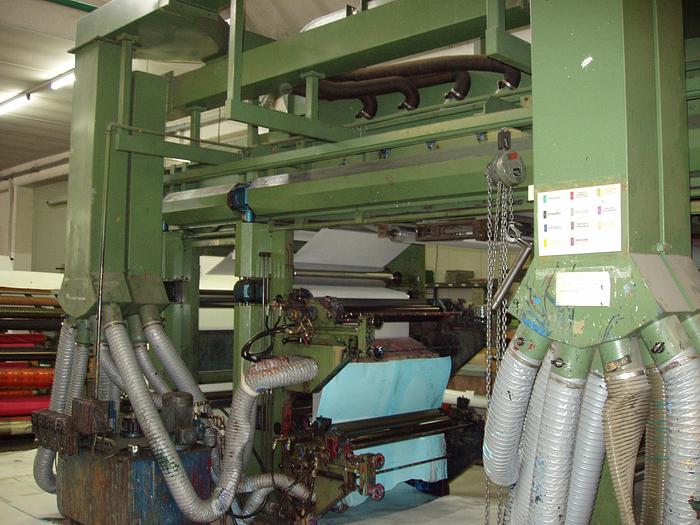

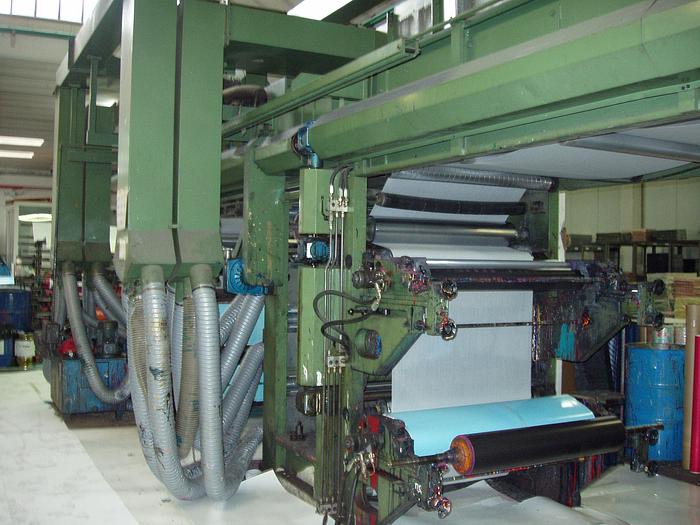

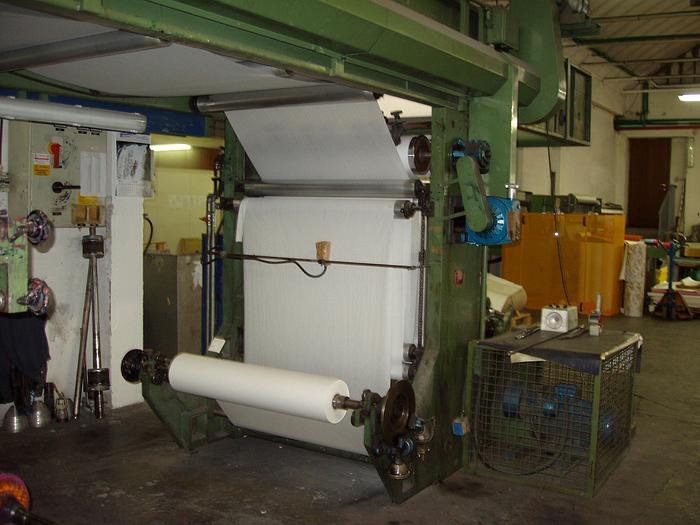

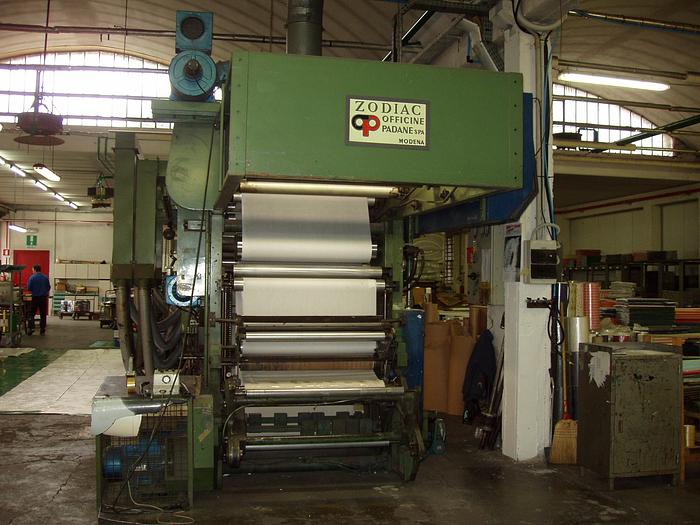

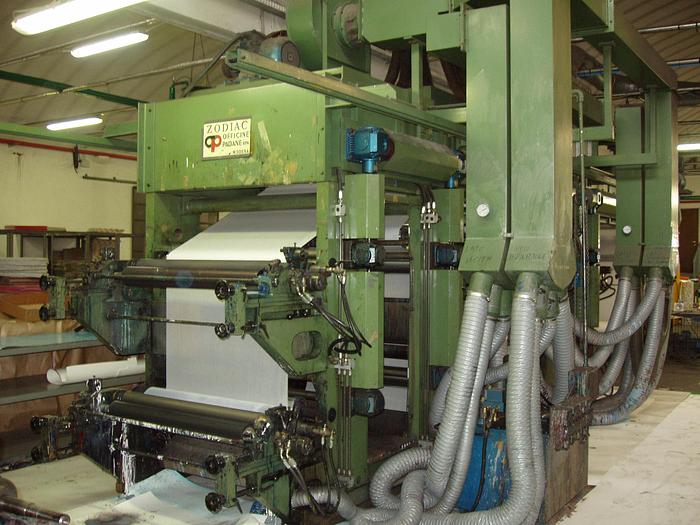

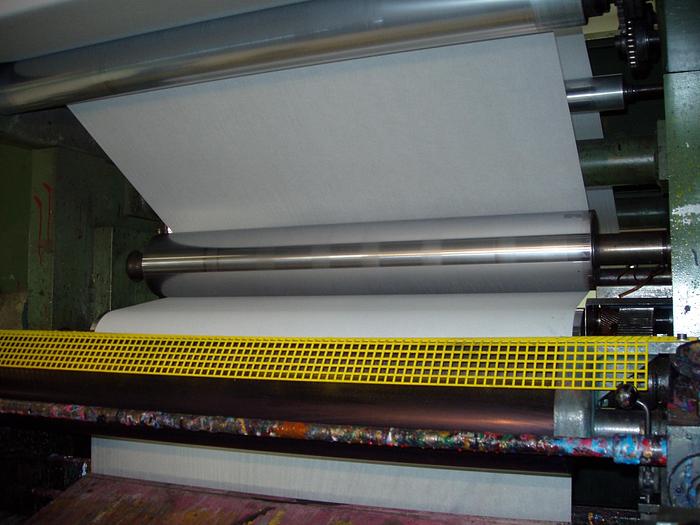

Second hand stack type flexo Schiavi (Officine Padane) Model Zodiac
The machine is equipped with 4 printing units (+ space for 2 additional colors).
Visible in production and immediately available.
Specifiche
| Produttore | SCHIAVI (Officine Padane) |
| Modello | Zodiac 4 col. flexo stack - 1000 mm |
| Anno | 1985 |
| Condizione | Used (visible in production) |
| Type | Flexo stack |
| Nr. colors | 4 (+ space for 2 additional colors) |
| Web width | 1060 mm |
| Printing width | 1000 mm |
| Print repeats (min. - max.) | 300 - 750 mm |
| Max unwinder diameter | 900/1000 mm |
| Max rewinder diameter | 900/1000 mm |
| Material | Paper, cardboard, film, tnt. |
| Material weight | from gr. 18 to gr. 400 mq |
| Drying system | Electrical |
| Max speed | 200 m/min |
| Camera | manual control with stroboscope |
| Cylinders | Inluded approx. 65 pcs |
| Machine Dimensions (approx.) | length mt. 12 - width mt. 2.5 - height mt. 3.5 / 4 |
